Grupp E II.
Nominalkaliber: 20,04 mm, verklig 20,3 mm.

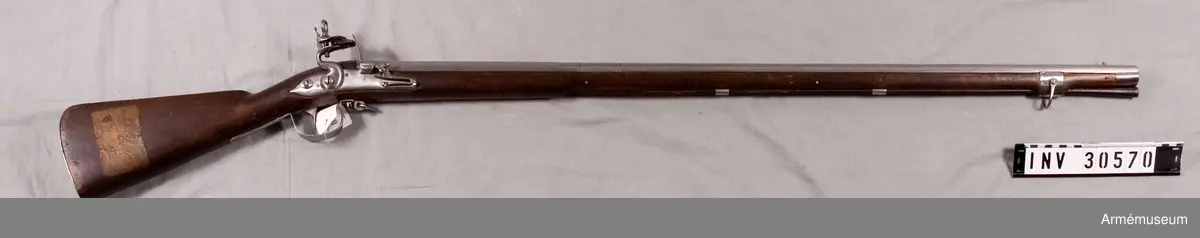

Kammarstycket är 30,6 cm långt, baktill åttkantigt, längst fram på en längd av 2,7 cm åttkantigt, framtill begränsat av en upphöjd och två insvarvade ränder. Tre liknande ränder gå kring det runda långa fältet 4,7 cm framför kammarstyckets främre ände, och 0,3 cm framför de sistnämda ränderna gå åter tre dylika ränder kring pipan. Knappformigt korn 4,1 cm bakom mynningen. Lågt ståndsikte längst fram på svansskruvsstjärten. På kammarstyckets översida otydlig stämpel och en med bokstäverna P O, på vänstra sidan två monogramstämplar, en med H L och en med P S samt längre ned siffran 7, på undersidan I H. Tre häften, nedifrån isatt korsskruv.
Låset har kullrigt, baktill i spets utlöpande bleck, nit i stället för pannskruv, hanhalsen baktill plan, läppskruven avslutas av en ring med 2 cm yttre diam., eldstålsfjäderns skruv går utifrån och eldstålsfjäderns bukt går framför främre låsskruvens ände. Pannstjärten är kort. På låsbleckets utsida ett inslaget S. Låset fasthålles av två skruvar. Säkringen består av en på låsets insida liggande regel, på vilken en på dess inre sida liggande, av stångfjäderns skruv fasthållen bladfjäder trycker. Regeln har ungefär på mitten en kort klack och fjädern gör vid änden en bukt. Regeln manövreras genom en på låsbleckets utsida nära bakspetsen liggande knapp, som på insidan har en arm, vilken går genom ett spår i låsblecket och vilken genom en nit fasthålles vid regeln. När låset ej är säkrat, ligger den nyss omtalade bladfjäderns bukt framför regelns klack. Vill man säkra låset sätter man det i halvspänn, skjuter den på bleckets utsida liggande knappen framåt, varvid regelns främre ände infaller i ett hak på nöten och sålunda spärrar låset. Då regeln går framåt, trycker dess klack undan fjäderns bukt, vilken, då regeln kommit så långt fram som den kan, lägger sig bakom regelklacken och sålunda håller regeln stilla.
Björkstock, ursprungligen svartbetsad. Plan kolvrygg, avrundad häl, kräva. Baktill på kolvens högra sida inslaget 7 och 2. Järnplåtsbeslag, bestående av bakplåt, som fasthålles av stift, stor varbygel, vars bakre arm fasthålles av två stift, och vars främre, som längst fram är utbildad till en ögla, fasthålles av korsskruven, kort avtryckarebleck, som fasthålles av två stift, kraftigt S-formigt, i jämnhöjd med stockens yta infällt platt sidbleck, två släta mellanrörkor, 3,15 cm brett näsbleck. Den bakre rembygeln är fäst i varbygelns ögla, men den U-formade främre skruv, som går genom krävbeslaget och genom främsta häftet. På bakåplåten är siffran 7 inslagen.
Laddstocken är av trä och har på smaländen ett 5,1 cm långt, med gängat hål för kratsen försett järnbeslag. Till vapnet hör en krats, som dock utställes särskilt under nummer AM 6350.

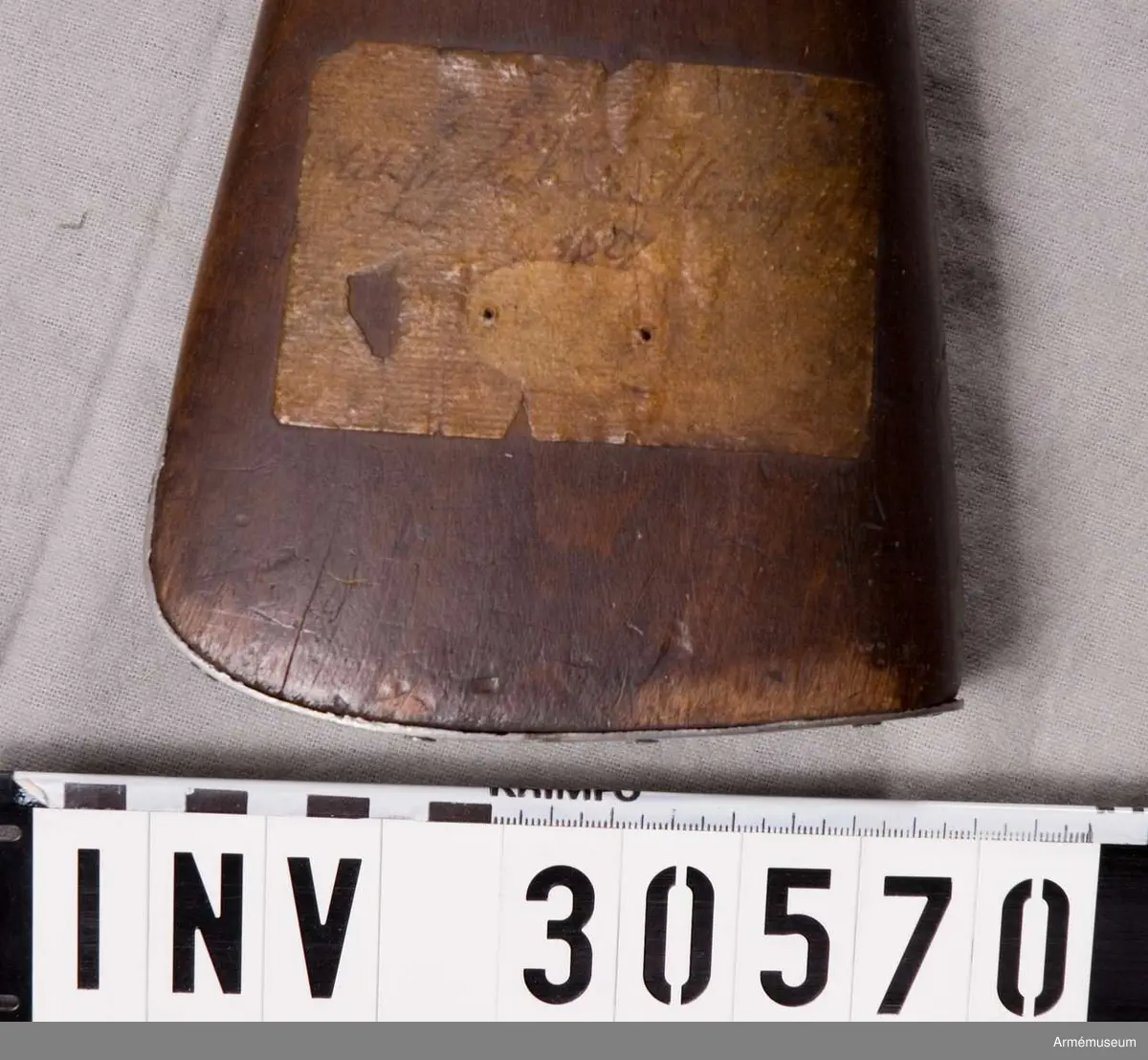

På en vid kolvens högra sida fastklistrad lapp står "Project till Infanteri Mousqvet Åhr 1687". Årtalet har senare genom påritning gjorts tydligare. Låset är tillverkat av bössmeden Pieter Starbus i Stockholm. I modellsalens reversal återfinnes musköten bland "Musköter och infanterigevär, svenske, med flintlås, 1689 års". I 1813 års inventarium över modellkammaren vid Kongl. Beväringsförrådet är vapnet upptaget bland "Modeller, projecterade" som "Mousquette, 1689 års". I Artillerimuseum har vapnet från 1879 alltid kallats "Infanterigevär med flintlås, projekt 1687" med varierande ordalydelse. J. Alm 1937. Kulvikt 36,6 g. Loppets rel. längd 34 kal. Flintlås.
