1 watt Bärbar Radiostation (1 W Br m/28), Arméns första bärbara radiostation.
Ur SoldI Signal 1942:
Stationen är utförd för telegrafering. Räckvidden är omkring 5 km. Frekvensområde 3700-6000 kHz indelat i 9 områden genom byte av kondenstaorenhet.

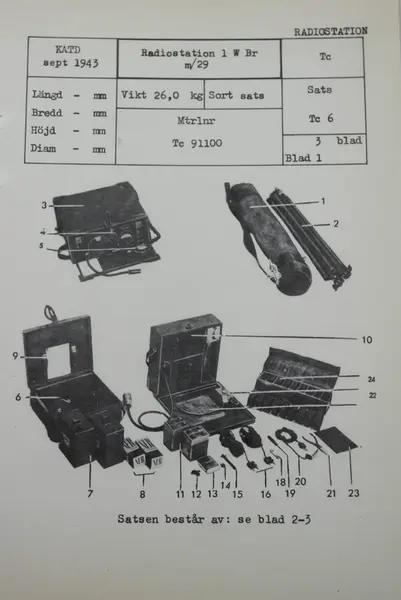

Stationen består av följande delar.

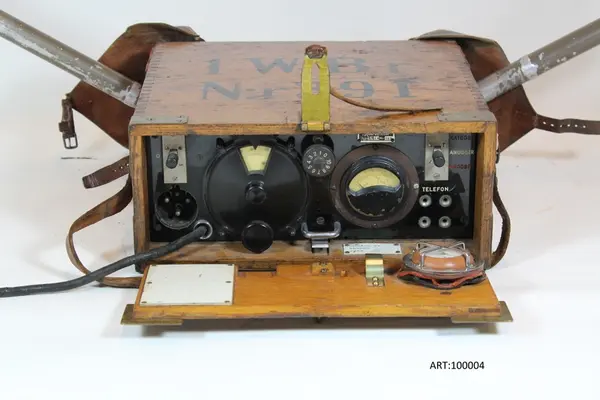

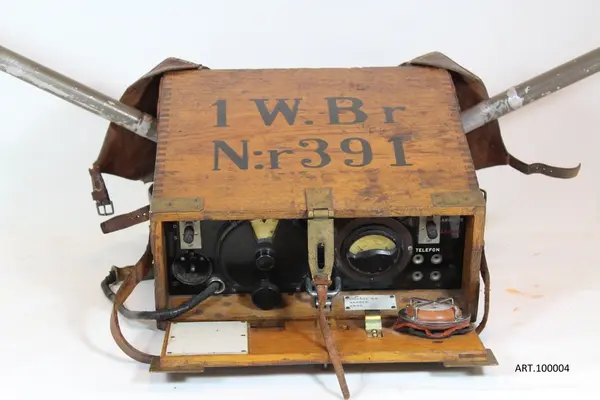

Apparatlådan med sändare och mottagare sammanbyggda, 3 A-rör för mottagning; ett av dem användes även för sändning.

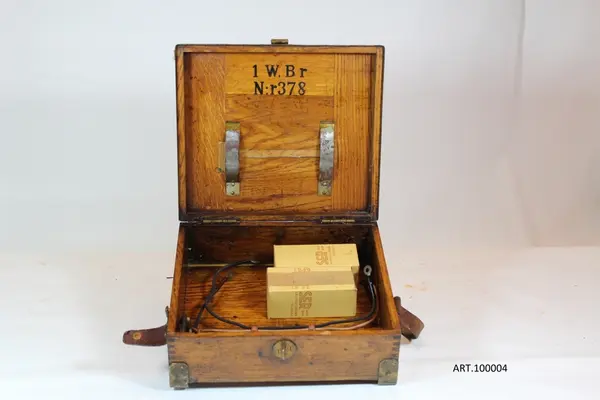

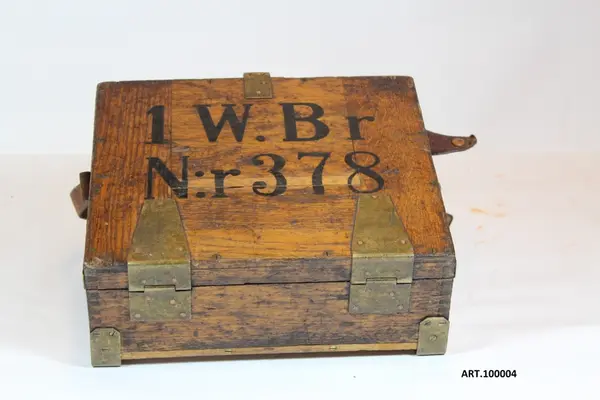

Batterilådan innehåller 2 seriekopplade batterier, A 63, om vardera 63 volts spänning.

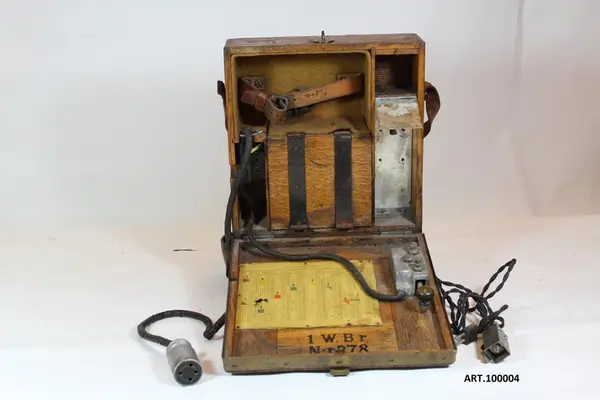

Materiallådan innehåller packningsutrymme för 2 hörtelefoner, verktyg mm, 1 ackumulatorbatteri om 2 ackumulatorer, D 10, som giva glödström till rören, samt 1 telegraferingsnyckel.

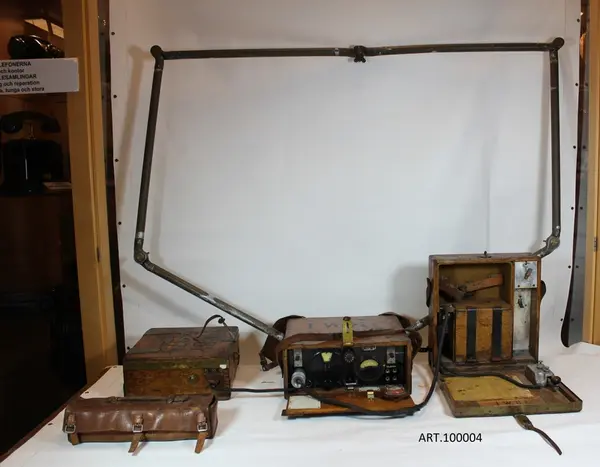

Antennramen bäres vid transport hopfälld i ett koger. När stationen är upprättad, är ramen utfälld och fastsatt i ramfötterna på apparatlådan.
Radiostationen upprättas på följande sätt.
Apparatens anslutningskabel anslutes till batterilådan och materiellådans anslutningskabel till apparatlådan. Ramen utfälldes och fastsättes i ramfötterna på apparatlådan. Hörtelefonerna anslutas.
På frekvenstabellen i materiallådans lock avläses vilken kondensatorenhet och vilket gradtal, som gäller för den anbefallda frekvensen.

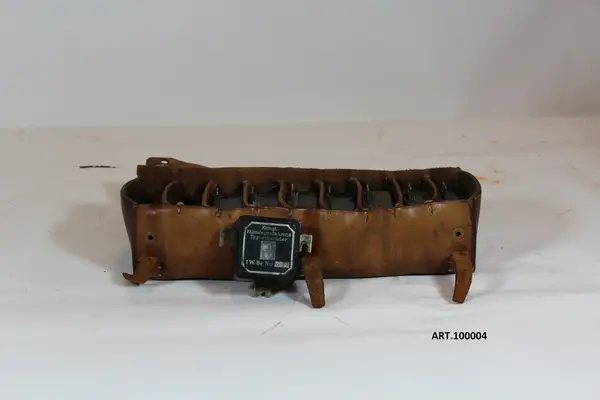

Kondensatorenheten fastskruvas mellan ramfötterna med hjälp av hylsnyckeln och frekvensskalan inställes på angivet gradtal.
Omkopplaren på vänstra delen av frontplattan ställes i läge S. För att erhålla kontroll på att apparaten svänger vid sändning nedtryckes nyckeln. Härvid skall visarutslag erhållas. Vid beröring av ramändan med handen skall visarutslaget ändras.
Härefter ställes omkopplaren i läge M. Potentiometern, som sitter mitt på frontplattan, vrides långsamt från läge O samtidigt som ramändan upprepade gånger beröres med handen.
Potentiometern inställes i det läge, där knäpparna i hörtelefonen börja höras särskilt kraftigt (vanligen omkring läge 3).
Genom att hålla frekvensratten rörlig några delstreck på ömse sidor om det angivna gradtalet uppsökes motstationen.
Kuriosa:
Stationens upprättande enligt Signaltruppinstruktion Del I 1942 års upplaga.
För stationens upprättande avses två man nr 1 (ch) och nr 2.
Sedan nr 1 angivit stationsplats och förbindelseriktning upprättas station på kommando: “Bygg station!” enligt nedanstående arbetsfördelning.
Nr 1 nedlägger batterilådan med bärremsfästena i förbindelseriktningen och lockets låsanordning åt det håll, varåt man önskar apparatens frontplatta samt med locket uppåt, nedlägger apparatlådan ovanpå batterilådan med bärremsfästena i förbindelseriktningen och locket åt det håll varåt frontplattan önskas, verkställer kondensatorbyte, om så erfordras, och ställer in kalibreringskondensatorn i enlighet med kalibreringstabellen, lösgör läderskydden på apparatlådans sidor och spänner dem tillsammans,
öppnar apparatlådans lock, ansluter anodkabeln.
Nr 2 nedsätter materiellådan på lämplig plats i närheten av apparatlådan ( i regel på högra sidan), framtager ramen ur kogret, utvecklar densamma, insätter ramen i apparaten, fastlåser ramens ändar samt åtdrager ramskruvarna.
Vid ramens utvecklande iakttages följande: den hopfällda ramen fattas ungefär på mitten med högra handen och hålles vågrätt med ramändarna vända nedåt och vilande på underarmen. Den vänstra handen fattar om mittpunkten på båda överst liggande ramdelarna vilka upplyftas, varvid de i mitten liggande ramdelarna föras uppåt och framåt tills stoppklackarna taga emot. Ramen
balanseras därefter i högra handen, vänstra handen fattar därefter om mitten av den vänstra yttersta ramdelen, varvid högra handen bibehåller greppet om den högra yttersta. Händerna föras utåt från varandra, varvid tillses att ramdelarna stöda mot klackarna. Ramen lutas härvid något framåt. Ramändarna inskjutas därefter genom gummiskydden i ramfötterna. Hävarmarna på 2ramfötterna nedpressas.
Vingmuttrarna åtdragas kraftigt.
För att kontrollera att ramskruvarna pressat ihop ramdelarna tillräckligt hårt, göres försök att rubba någon av de 4 mellersta ramdelarna ur deras inbördes läge.
Nr 1 öppnar materiellådan, framtager anslutningskabeln samt ansluter densamma, Vid otjänlig väderlek anbringas nyckeln utanpå lådan, som stänges,
Framtager hörtelefonerna, ansluter desamma samt påtager den ena,
Inställer och provar apparaten.
Nr 2 tager plats vid sidan av nr 1 samt påtager den andra hörtelefonen.
Underlag till ”beskrivning” är i huvudsak hämtat ur Försvarets Historiska Telesamlingar
Armén, sammanställning över arméns lätta radiostationer under 1900-talet av
Sven Bertilsson och Thomas Hörstedt (Grön radio).
About the object
about
1 watt Bärbar Radiostation (1 W Br m/28), Arméns första bärbara radiostation.
Ur SoldI Signal 1942:
Stationen är utförd för telegrafering. Räckvidden är omkring 5 km. Frekvensområde 3700-6000 kHz indelat i 9 områden genom byte av kondenstaorenhet.
Stationen består av följande delar.
Apparatlådan med sändare och mottagare sammanb...
1 watt Bärbar Radiostation (1 W Br m/28), Arméns första bärbara radiostation.
Ur SoldI Signal 1942:
Stationen är utförd för telegrafering. Räckvidden är omkring 5 km. Frekvensområde 3700-6000 kHz indelat i 9 områden genom byte av kondenstaorenhet.
Stationen består av följande delar.
Apparatlådan med sändare och mottagare sammanbyggda, 3 A-rör för mottagning; ett av dem användes även för sändning.
Batterilådan innehåller 2 seriekopplade batterier, A 63, om vardera 63 volts spänning.
Materiallådan innehåller packningsutrymme för 2 hörtelefoner, verktyg mm, 1 ackumulatorbatteri om 2 ackumulatorer, D 10, som giva glödström till rören, samt 1 telegraferingsnyckel.
Antennramen bäres vid transport hopfälld i ett koger. När stationen är upprättad, är ramen utfälld och fastsatt i ramfötterna på apparatlådan.
Radiostationen upprättas på följande sätt.
Apparatens anslutningskabel anslutes till batterilådan och materiellådans anslutningskabel till apparatlådan. Ramen utfälldes och fastsättes i ramfötterna på apparatlådan. Hörtelefonerna anslutas.
På frekvenstabellen i materiallådans lock avläses vilken kondensatorenhet och vilket gradtal, som gäller för den anbefallda frekvensen.
Kondensatorenheten fastskruvas mellan ramfötterna med hjälp av hylsnyckeln och frekvensskalan inställes på angivet gradtal.
Omkopplaren på vänstra delen av frontplattan ställes i läge S. För att erhålla kontroll på att apparaten svänger vid sändning nedtryckes nyckeln. Härvid skall visarutslag erhållas. Vid beröring av ramändan med handen skall visarutslaget ändras.
Härefter ställes omkopplaren i läge M. Potentiometern, som sitter mitt på frontplattan, vrides långsamt från läge O samtidigt som ramändan upprepade gånger beröres med handen.
Potentiometern inställes i det läge, där knäpparna i hörtelefonen börja höras särskilt kraftigt (vanligen omkring läge 3).
Genom att hålla frekvensratten rörlig några delstreck på ömse sidor om det angivna gradtalet uppsökes motstationen.
Kuriosa:
Stationens upprättande enligt Signaltruppinstruktion Del I 1942 års upplaga.
För stationens upprättande avses två man nr 1 (ch) och nr 2.
Sedan nr 1 angivit stationsplats och förbindelseriktning upprättas station på kommando: “Bygg station!” enligt nedanstående arbetsfördelning.
Nr 1 nedlägger batterilådan med bärremsfästena i förbindelseriktningen och lockets låsanordning åt det håll, varåt man önskar apparatens frontplatta samt med locket uppåt, nedlägger apparatlådan ovanpå batterilådan med bärremsfästena i förbindelseriktningen och locket åt det håll varåt frontplattan önskas, verkställer kondensatorbyte, om så erfordras, och ställer in kalibreringskondensatorn i enlighet med kalibreringstabellen, lösgör läderskydden på apparatlådans sidor och spänner dem tillsammans,
öppnar apparatlådans lock, ansluter anodkabeln.
Nr 2 nedsätter materiellådan på lämplig plats i närheten av apparatlådan ( i regel på högra sidan), framtager ramen ur kogret, utvecklar densamma, insätter ramen i apparaten, fastlåser ramens ändar samt åtdrager ramskruvarna.
Vid ramens utvecklande iakttages följande: den hopfällda ramen fattas ungefär på mitten med högra handen och hålles vågrätt med ramändarna vända nedåt och vilande på underarmen. Den vänstra handen fattar om mittpunkten på båda överst liggande ramdelarna vilka upplyftas, varvid de i mitten liggande ramdelarna föras uppåt och framåt tills stoppklackarna taga emot. Ramen
balanseras därefter i högra handen, vänstra handen fattar därefter om mitten av den vänstra yttersta ramdelen, varvid högra handen bibehåller greppet om den högra yttersta. Händerna föras utåt från varandra, varvid tillses att ramdelarna stöda mot klackarna. Ramen lutas härvid något framåt. Ramändarna inskjutas därefter genom gummiskydden i ramfötterna. Hävarmarna på 2ramfötterna nedpressas.
Vingmuttrarna åtdragas kraftigt.
För att kontrollera att ramskruvarna pressat ihop ramdelarna tillräckligt hårt, göres försök att rubba någon av de 4 mellersta ramdelarna ur deras inbördes läge.
Nr 1 öppnar materiellådan, framtager anslutningskabeln samt ansluter densamma, Vid otjänlig väderlek anbringas nyckeln utanpå lådan, som stänges,
Framtager hörtelefonerna, ansluter desamma samt påtager den ena,
Inställer och provar apparaten.
Nr 2 tager plats vid sidan av nr 1 samt påtager den andra hörtelefonen.
Underlag till ”beskrivning” är i huvudsak hämtat ur Försvarets Historiska Telesamlingar
Armén, sammanställning över arméns lätta radiostationer under 1900-talet av
Sven Bertilsson och Thomas Hörstedt (Grön radio).
Efter 1936 års försvarsbeslut och den därmed igångsatta upprustningen, kom tillverkningen i gång på allvar av 1 wattaren. I KATD Dnr 546. 1937-11-22 kan man läsa ut att 283 stationer tillverkades för infanteriet. Dessa fördelades:
Dessa radiostationer tillverkades vid Fälttelegrafkårens Tygverkstäder i Solna. Ytterligare beställningar gjordes. Hur många totalt och deras fördelning till andra truppslag än infanteriet är svårt att läsa ut i Krigsarkivets handlingar, men den ursprungliga planen 324 stationer samt ersättningen för den ej tillverkade stationen för räckvidd 2 km gör att slutsumman blev drygt 400
stationer.
