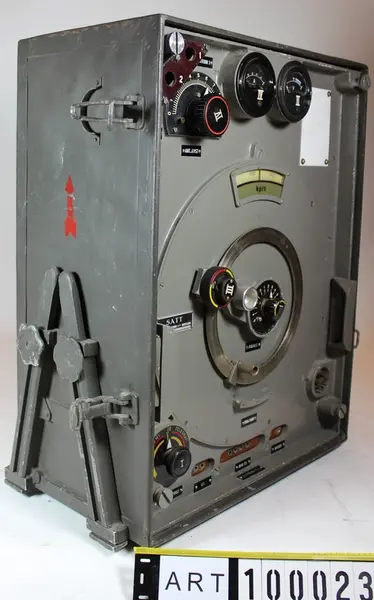

Endast sändar- och mottagarenhet finns, övriga delar saknas.

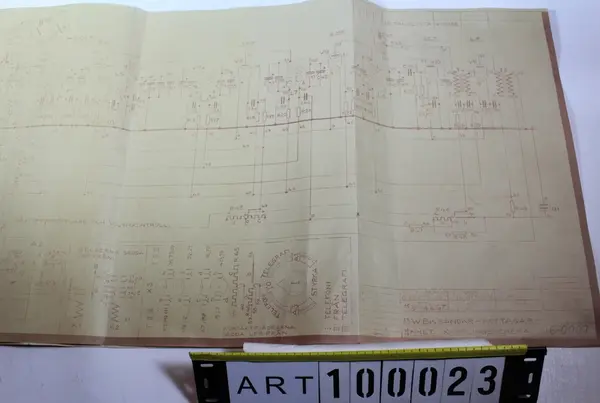

1. 15 watts bärbar radiostation (15 W Br m/39)
Speciellt för Signalregementet infördes från Tyskland, med senare sven ...
Endast sändar- och mottagarenhet finns, övriga delar saknas.
1. 15 watts bärbar radiostation (15 W Br m/39)
Speciellt för Signalregementet infördes från Tyskland, med senare svensk tillverkning,. 15 W radiostation m/39 avsedd främst för kärrtransport men oftast medförd på släpkärra efter tandem- cykel eller på cykelbårar.
Ur SoldI Signal 1942
Stationen är utförd för telegrafi utan ton och telefonering. Räckvidden uppgår vid mastantenn för markvågen till 70 à 100 km vid telegrafering och 30 à 40 km vid telefonering. För rymd-vågen uppgår räckvidden till 1 000 km vid telegrafering och 400 km vid telefonering.

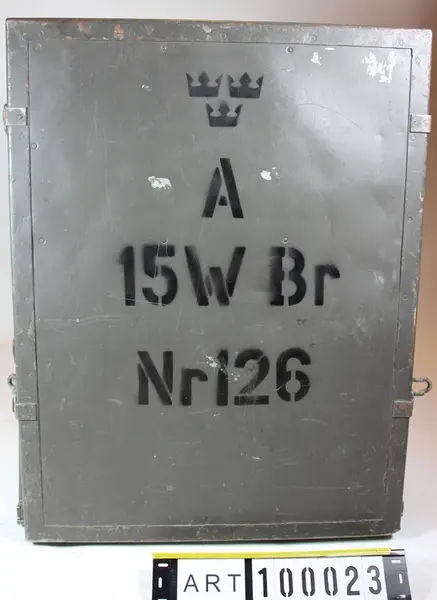

Stationen transporteras i tre bördor: apparatlåda, batterilåda och trampgenerator.

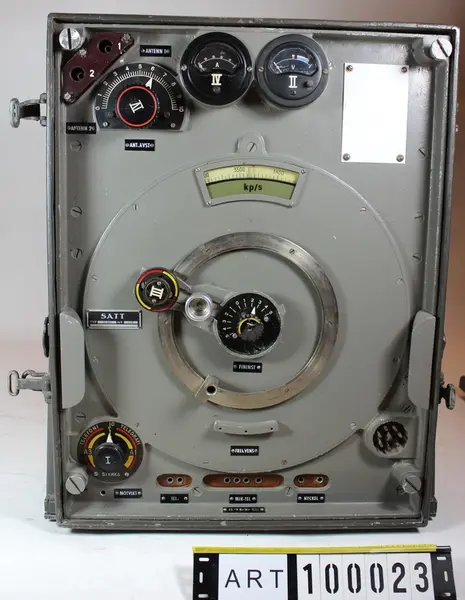

• Apparatlådan innehåller sändare och mottagare.
• Batterilådan innehåller erforderliga batterier för mottagarens drift, vissa kopplinganordningar. samt diverse tillbehör bl a en handmikrotelefon och strupmikrotelefon, två hörtelefoner och en telegraferingsnyckel.
• Trampgeneratorn, som är försedd med sittställning (bärställning), kan leverera erforderliga spänningar för såväl mottagarens som sändarens drift. Tillsammans med trampgeneratorn trans- porteras ett antennfodral innehållande antennmateriel samt fastspända på trampgeneratorn två isärtagbara antennmaster.
• Batteriutrustningen urgöres av ett glödströmsbatteri – 5 st nifeackumulatorer, E 10 – och två
anodbatterier, A 90.
• Antennutrustningen ugöres av en mastantenn som uppbygges av två antennmaster, en antenn- lina – 12 m lång, nedledning – 4 m lång samt två dubbla staglinor. Motvikten utgöres av 2 st 6 m långa motviktslinor.
•
Kuriosa: Ur Signaltruppernas historia
I en hemlig skrivelse från Kungl Arméförvaltningen till CA från 1937-06-12 meddelas ”…sedan vederbörlig prövning av anbuden skett har leverans av materielen (20 st radiosändare) kontrakterats med Svenska A/B Trådlös Telegrafi.(SATT) 5 st sändare levererades i november månad och resterande 15 st i februari 1938”
Kungl Arméförvaltningen beställde av SATT 1939-11-27 100 st 15 W-stationer av typ Telefunken SE 469A (15 W Br) samt 1940-01-03 ytterligare sju kompletta 15 W-stationer.
Den 16 februari 1940 tillskrev KAFT Chefen för försvarsstaben och meddelade att de beställda 107 stationerna, som skulle ha levererats med delleveranser den 1 februari och 1 mars 1940 och var avsedda för vissa artilleriförband, ännu icke levererats.
Enligt KAFT Dnr 078:307, 1942-06-10 finns endast ett litet antal 15 W-stationer och endast vid signaltrupperna.
Organisation:
Radiocykelgrupper 15 W ur signaltrupperna ingick i:
• Högkvarterets radiokompani
• Arméfördelningarnas Fördelningsstationskompani
• Bodens fästnings 1. och 3. Fästningssignalkompanier
Beskrivningar:
Instruktion för 15 watts bärbar radiostation 15 W Br m/39. Del I handhavande. Fastställd av KAFT Dnr MB2/058:4163 Juli 1943
Underlag till ”beskrivning” är i huvudsak hämtat ur Försvarets Historiska Telesamlingar
Armén, sammanställning över arméns lätta radiostationer under 1900-talet av
Sven Bertilsson och Thomas Hörstedt (Grön radio).
About the object
about
Endast sändar- och mottagarenhet finns, övriga delar saknas.
1. 15 watts bärbar radiostation (15 W Br m/39)
Speciellt för Signalregementet infördes från Tyskland, med senare svensk tillverkning,. 15 W radiostation m/39 avsedd främst för kärrtransport men oftast medförd på släpkärra efter tandem- cykel eller på cykelbårar.
Ur ...
Endast sändar- och mottagarenhet finns, övriga delar saknas.
1. 15 watts bärbar radiostation (15 W Br m/39)
Speciellt för Signalregementet infördes från Tyskland, med senare svensk tillverkning,. 15 W radiostation m/39 avsedd främst för kärrtransport men oftast medförd på släpkärra efter tandem- cykel eller på cykelbårar.
Ur SoldI Signal 1942
Stationen är utförd för telegrafi utan ton och telefonering. Räckvidden uppgår vid mastantenn för markvågen till 70 à 100 km vid telegrafering och 30 à 40 km vid telefonering. För rymd-vågen uppgår räckvidden till 1 000 km vid telegrafering och 400 km vid telefonering.
Stationen transporteras i tre bördor: apparatlåda, batterilåda och trampgenerator.
• Apparatlådan innehåller sändare och mottagare.
• Batterilådan innehåller erforderliga batterier för mottagarens drift, vissa kopplinganordningar. samt diverse tillbehör bl a en handmikrotelefon och strupmikrotelefon, två hörtelefoner och en telegraferingsnyckel.
• Trampgeneratorn, som är försedd med sittställning (bärställning), kan leverera erforderliga spänningar för såväl mottagarens som sändarens drift. Tillsammans med trampgeneratorn trans- porteras ett antennfodral innehållande antennmateriel samt fastspända på trampgeneratorn två isärtagbara antennmaster.
• Batteriutrustningen urgöres av ett glödströmsbatteri – 5 st nifeackumulatorer, E 10 – och två
anodbatterier, A 90.
• Antennutrustningen ugöres av en mastantenn som uppbygges av två antennmaster, en antenn- lina – 12 m lång, nedledning – 4 m lång samt två dubbla staglinor. Motvikten utgöres av 2 st 6 m långa motviktslinor.
•
Kuriosa: Ur Signaltruppernas historia
I en hemlig skrivelse från Kungl Arméförvaltningen till CA från 1937-06-12 meddelas ”…sedan vederbörlig prövning av anbuden skett har leverans av materielen (20 st radiosändare) kontrakterats med Svenska A/B Trådlös Telegrafi.(SATT) 5 st sändare levererades i november månad och resterande 15 st i februari 1938”
Kungl Arméförvaltningen beställde av SATT 1939-11-27 100 st 15 W-stationer av typ Telefunken SE 469A (15 W Br) samt 1940-01-03 ytterligare sju kompletta 15 W-stationer.
Den 16 februari 1940 tillskrev KAFT Chefen för försvarsstaben och meddelade att de beställda 107 stationerna, som skulle ha levererats med delleveranser den 1 februari och 1 mars 1940 och var avsedda för vissa artilleriförband, ännu icke levererats.
Enligt KAFT Dnr 078:307, 1942-06-10 finns endast ett litet antal 15 W-stationer och endast vid signaltrupperna.
Organisation:
Radiocykelgrupper 15 W ur signaltrupperna ingick i:
• Högkvarterets radiokompani
• Arméfördelningarnas Fördelningsstationskompani
• Bodens fästnings 1. och 3. Fästningssignalkompanier
Beskrivningar:
Instruktion för 15 watts bärbar radiostation 15 W Br m/39. Del I handhavande. Fastställd av KAFT Dnr MB2/058:4163 Juli 1943
Underlag till ”beskrivning” är i huvudsak hämtat ur Försvarets Historiska Telesamlingar
Armén, sammanställning över arméns lätta radiostationer under 1900-talet av
Sven Bertilsson och Thomas Hörstedt (Grön radio).
